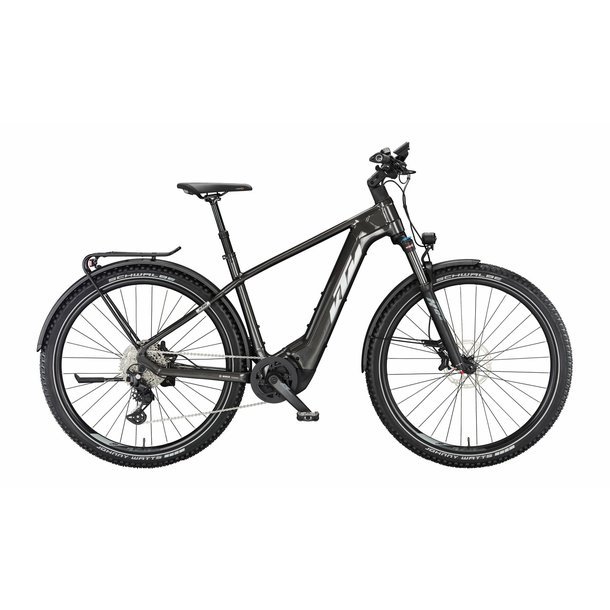

KTM MACINA TEAM LFC M 2024

E-SYSTEM BOSCH PT-CX7K4
FRAME Macina MTB 29" Alloy6061; PT750Wh Bosch Gen.4 / M-2706
FORK Suntour XCR 34 Air 29" LOR 120mm 15x110 taper
MOTOR Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
DISPLAY Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM
BATTERY Bosch PowerTUBE 750Wh SMART SYSTEM hor.
CHARGER Bosch STANDARD Charger 4A SMART SYSTEM
R. DERAILL Shimano Deore M5130-10 LG shadow+
SHIFTLEV. Shimano Deore M5130-10 LG display
CRANKSET KTM E-COMP ISIS 170mm Q16
CHAINRING FSA Megatooth steel 38T with chainguard
SPROCKET Shimano LG400-10 / 11-43
CHAIN Shimano LG500
BRAKE Tektro HD-M535 4-Piston
ROTOR Tektro TR-45 2.3mm CL 180 / 180
WHEEL F KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
WHEEL R KTM Line - Shimano MT400B CL 32H 148-12TA / Ryde Rival30 32H 622x30C / DT Alpine II 2.34 black
TIRE F Schwalbe Johnny Watts Perf. DD RaceGuard 60-622
TIRE R Schwalbe Johnny Watts Perf. DD RaceGuard 60-622
GRIP Ergon GP1 SD
BAR KTM COMP II rizer15 700mm
STEM KTM adjust. 0-60° ICR
HEADSET Acros AICR internal 1.1/8"-1.5" angle limit
SADDLE Selle Royal Lookin Athletic
SEATPOST KTM COMP II dropper internal
PEDAL MTB-Pedal flat VPE-527 alloy
CARRIER Racktime light (snap-it 2.0)
LIGHT F Litemove SE-150 LED 150Lux
FENDER Racktime Alu 72mm B&M Xeltec
KICKSTAND KTM 28" adjustable
WEIGHT 27,80 kg
PERMISSIBLE TOTAL WEIGHT 147 kg
